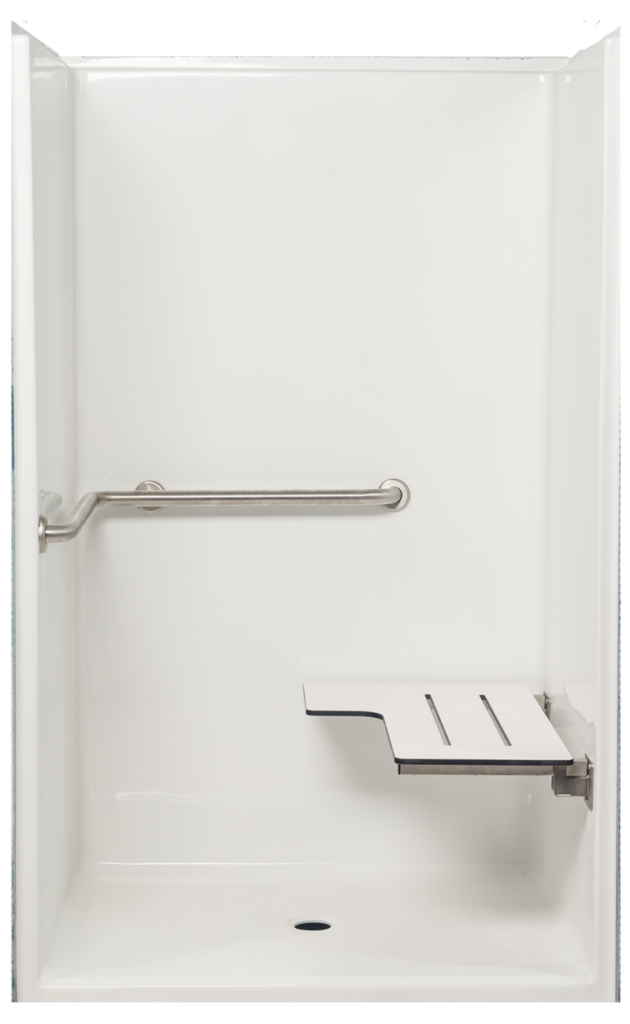

74838 Sam 48″ One Piece Barrier Free Shower

• High Gloss Gelcoat Finish
• Shower module shall be additionally reinforced with 1/2″ OSB. All units have an anti-skid floor treatment.
• The unit shall be installed in a pit 1 3/4″ deep so the finished floor will be level with the top of the threshold.
• The unit shall have nominal outside dimensions of 48″ x 37 1/4″ and nominal inside dimensions of 45 3/4″ x 36″. Shimming is necessary. It is recommended that a floor drain at or near the entrance to the shower be included.

• ¼ to ½ “ flange variance
• Available Colors: White, Bone
• Curtain rod and shower curtain available.
• All units shall have anti-skid floor treatment to meet performance requirements of ASTM F-462-78.
• Units conform to ANSI A-117.1 and ANSI Z-124.2; the shower also complies with the guidelines issued by ADA, US. Architectural and Transportation Barriers Compliance Board (A & T.B.C.B.) and with most city, state and national standards for barrier free, accessible shower facilities for the handicapped.
• Factory installed components are provided with additional back reinforcements to provide code complying structural integrity and are sealed from the back side.
• On Model 73838S the factory supplied components to be included are one stainless steel wrap around grab bar and a fold up seat.

This unit is made of sanitary grade high gloss polyester gelcoat with reinforced composite matrix.
