- ¼ to ½ “ flange variance
- Dimensions: 62″ x 33″ x 78 3/4 with flange
- Shipping Weight: 250 lbs
- Installation Instructions Included.
- All units shall have anti-skid floor treatment to meet performance requirements of ASTM F-462-78.
- Units conform to ANSI A-117.1 and ANSI Z-124.2; the shower also complies with the guidelines issued by ADA, US. Architectural and Transportation Barriers Compliance Board (A & T.B.C.B.) and with most city, state and national standards for barrier free, accessible shower facilities for the handicapped.
- Additional back reinforcement is added to provide code complying structural integrity and are sealed from the back side.

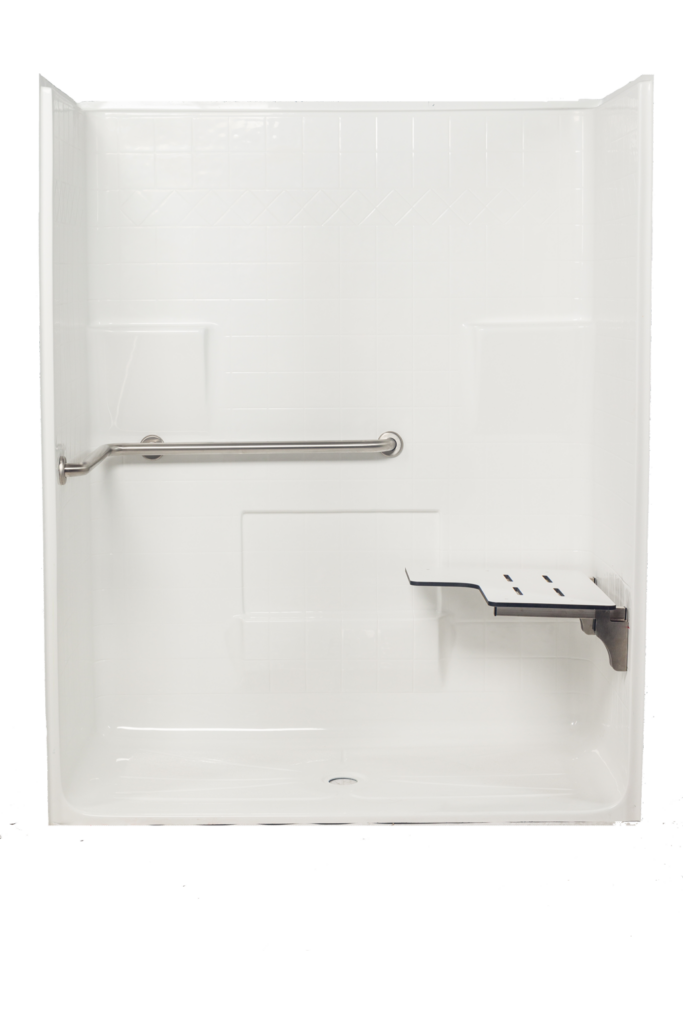

- On Model 76233S the factory supplied components to be included are one stainless steel wrap around grab bar and a fold up seat with white phenolic bench.
This unit is made of sanitary grade high gloss polyester gelcoat with reinforced composite matrix.
